Your crawl space is cold, damp, and probably home to some unwanted pests. Insulating it properly can make your home more comfortable and reduce your energy bills significantly. Here is a complete guide on crawl space insulation how to install it correctly for maximum energy savings and moisture protection. This ensures the best results for your project.
Crawl space insulation costs $1 to $4 per square foot depending on the material you choose. The most common options are fiberglass batts between the floor joists, rigid foam board on the walls, or spray foam for complete air sealing. Each method has different installation steps and performance characteristics for your specific situation. This ensures the best results for your project.
Preparing the Crawl Space for Insulation
Before installing any insulation material in the crawl space area, you must prepare the space properly. Start by removing any debris, old insulation, or pest nesting materials from the space. Wear protective clothing, gloves, a dust mask, and safety glasses during the cleanup process. The crawl space area should be clean and completely dry before you begin the insulation work for the project. This ensures the best results for your project.
Check for moisture problems in the crawl space before insulating. Look for standing water, damp soil, mold growth, or musty odors that indicate excessive moisture. These issues must be fixed before insulation is installed or the insulation will trap moisture and cause rot and mold problems in the floor structure. Install a vapor barrier on the crawl space floor if one is not already present. This ensures the best results for your project.
Seal all air leaks in the crawl space walls and floor before adding insulation. Use caulk or expanding spray foam to seal gaps around pipes, wires, and vents that penetrate the crawl space walls. Air sealing is essential because air leaks reduce the effectiveness of the insulation by allowing outdoor air to circulate around the insulated area. This ensures the best results for your project.
Installing a Vapor Barrier

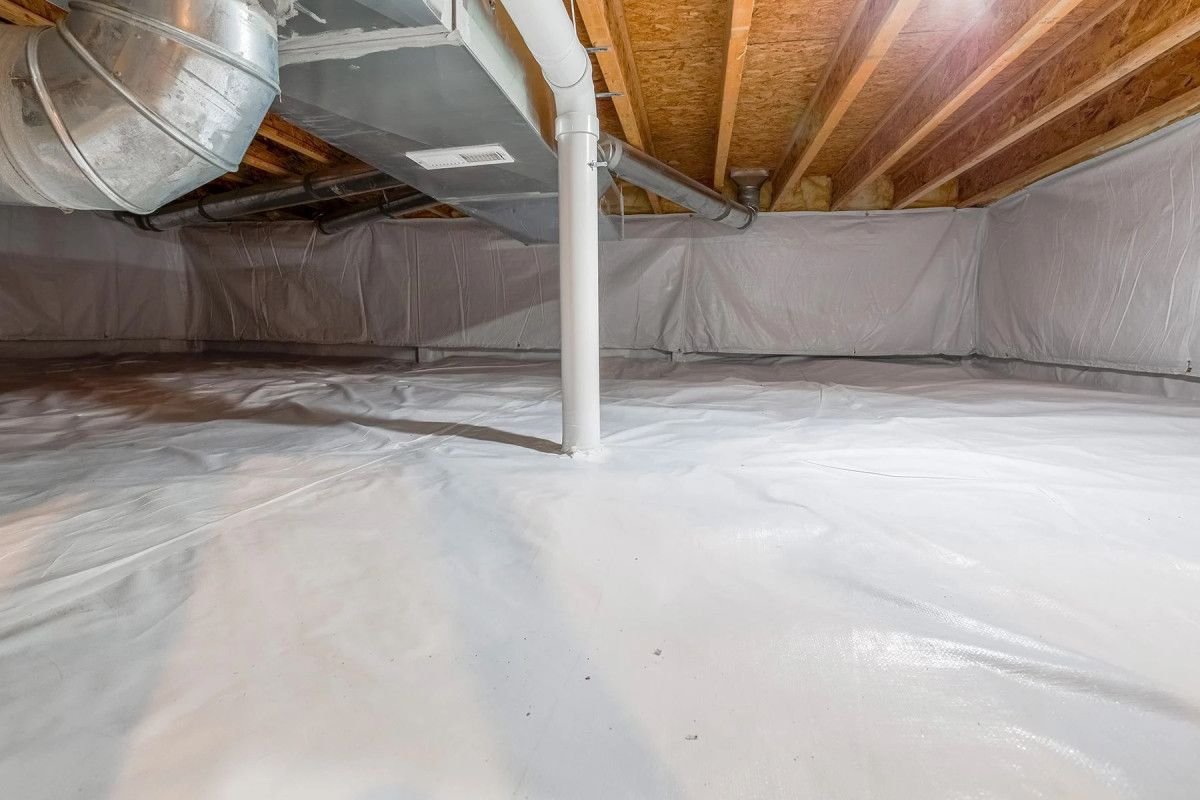

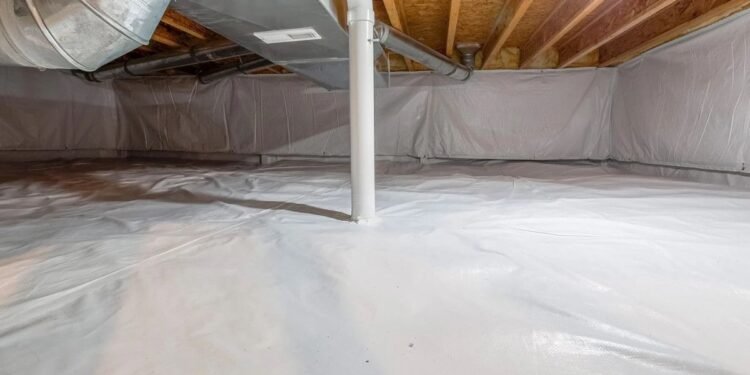

A vapor barrier is essential for crawl space insulation to prevent moisture from rising through the soil and damaging the insulation and floor structure. The vapor barrier is a heavy plastic sheet laid on the crawl space floor that blocks moisture from evaporating into the air. Without a vapor barrier, moisture accumulates in the insulation and causes mold, rot, and reduced R-value. This ensures the best results for your project.
Install a 6-mil or thicker polyethylene vapor barrier on the crawl space floor. Overlap the sheets by 12 inches at the seams and seal the seams with tape designed for vapor barrier use. Extend the vapor barrier up the walls by 6 to 12 inches and secure it with furring strips or mechanical fasteners. The vapor barrier should cover the entire floor area for complete protection. This ensures the best results for your project.
The cost of a vapor barrier is $0.15 to $0.30 per square foot for materials. A typical 1,000-square-foot crawl space costs $150 to $300 for the vapor barrier material. The vapor barrier installation takes one to two days for a DIY installer. Professional vapor barrier installation costs $0.50 to $1 per square foot total for the complete job. This ensures the best results for your project.
Installing Fiberglass Batts Between Floor Joists
Fiberglass batts are the most common and affordable option for crawl space insulation between the floor joists above the crawl space. The batts are installed between the joists with the vapor barrier facing toward the heated space above. The batts must fit snugly between the joists without gaps or compression for maximum effectiveness. This ensures the best results for your project.
Cut the fiberglass batts to the correct length using a sharp utility knife and a straightedge for a precise fit. The batts should fit tightly between the joists without being compressed. Use wire insulation supports or twine to hold the batts in place if they do not fit snugly between the joists. Install the batts with the paper vapor barrier facing up toward the heated floor above. This ensures the best results for your project.
Fiberglass batts cost $0.50 to $1.50 per square foot for the material. A typical 1,000-square-foot crawl space costs $500 to $1,500 for the batt material alone. Installation takes one to two weekends for a DIY installer. Professional installation of fiberglass batts costs $1 to $2 per square foot installed for the complete project.
Installing Rigid Foam Board on Walls
Rigid foam board insulation is installed on the crawl space walls instead of between the floor joists. This method is recommended for crawl spaces that are dry and have the vapor barrier installed on the floor. Foam board provides a continuous layer of insulation on the walls that seals the crawl space from the outside temperature.
Cut the foam board to fit between the wall studs or attach it directly to the masonry walls using adhesive or mechanical fasteners. Seal the seams between the foam boards with tape or spray foam to create a continuous air barrier. The foam board should extend from the floor to the rim joist above for complete coverage of the wall area.
Rigid foam board costs $1 to $2.50 per square foot for the material. Installation takes one to two days for a DIY installer. Professional installation of foam board on crawl space walls costs $2 to $4 per square foot total for the project.
Insulating the Rim Joist Area
The rim joist area where the floor framing meets the foundation wall is one of the most important areas to insulate in the crawl space. This area is often overlooked but can be a major source of air leakage and heat loss. Proper insulation of the rim joist area significantly improves the overall energy efficiency of the crawl space insulation system.
Cut rigid foam board to fit into each rim joist cavity between the floor joists. Seal the edges of the foam board with expanding spray foam to create an airtight seal. Alternatively, spray foam can be applied directly to the rim joist area for complete coverage. Spray foam provides both insulation and air sealing in one step for this critical area.
A crawl space contractor with 18 years of experience said: “The most common mistake I see with crawl space insulation is installing fiberglass batts under the floor without installing a vapor barrier first. The fiberglass absorbs moisture from the soil and becomes heavy and compressed, losing most of its R-value. The vapor barrier is more important than the insulation itself. Always install the vapor barrier first, then add the insulation above it.”
- Fiberglass batts: cheap but can sag if not supported properly
- Rigid foam board: excellent for walls, waterproof, easy to cut
- Spray foam: best air seal, highest R-value, must be professional
The investment in proper installation pays off through lower energy bills and increased home comfort. Take the time to do the job correctly the first time. Follow the manufacturer instructions for the specific products you choose for the project. Proper preparation and attention to detail during installation ensure the best results and longest lifespan for your system.
Crawl Space Insulation Cost Estimate
The total cost for crawl space insulation depends on the size of the crawl space, the insulation material you choose, and whether you do the work yourself or hire a professional. A typical 1,000-square-foot crawl space costs $500 to $2,500 for DIY installation or $1,500 to $5,000 for professional installation. The vapor barrier and air sealing materials add $150 to $500 to the total project cost depending on the size and condition of the crawl space area.
The return on investment for crawl space insulation is excellent. The energy savings from a properly insulated crawl space reduce heating and cooling costs by 10 to 30 percent per year. The insulation also protects the floor structure from moisture damage and improves indoor air quality by blocking outdoor pollutants and allergens from entering the home through the crawl space. Most homeowners recover the cost of insulation in 3 to 7 years through energy savings.
Taking the time to research and plan your project ensures the best results. The investment in proper materials and installation pays off through better performance, longer lifespan, and greater satisfaction with the finished project. Use the information provided to make confident decisions for your home improvement needs. Compare options carefully and choose the solution that best fits your specific requirements and budget for the project.
Frequently Asked Questions
What is the best insulation for a crawl space?
Rigid foam board on the walls is best for dry crawl spaces. Fiberglass batts between floor joists work for ventilated crawl spaces. Spray foam is best for complete air sealing and insulation.
Do I need a vapor barrier in my crawl space?
Yes, a vapor barrier is essential for all crawl spaces. It prevents moisture from the soil from damaging the insulation and floor structure. Use 6-mil polyethylene sheeting for the vapor barrier.
Can I insulate my crawl space myself?
Yes, DIY crawl space insulation is possible. Fiberglass batts and foam board are DIY-friendly. Spray foam requires professional installation. The project takes one to three weekends for a DIY.
How much does crawl space insulation cost?
DIY costs $500 to $2,500 for materials. Professional costs $1,500 to $5,000 installed. The cost depends on the insulation type, crawl space size, and accessibility conditions.
Does crawl space insulation pay for itself?
Yes, crawl space insulation reduces energy bills by 10 to. The investment pays for itself in 3 to 7 years through lower heating and cooling costs.
Should I ventilate my crawl space after insulating?
Sealed crawl spaces with proper vapor barriers do not nee. Ventilated crawl spaces should have vents open in summer and closed in winter for best performance.
How do I prevent moisture in the crawl space?
Install a vapor barrier, ensure proper drainage around th. Moisture control is essential before insulating.
How do I keep pests out of crawl space insulation?
Seal all gaps and openings around pipes and wires. Install rodent proofing materials at vents and doors. Use pest resistant insulation materials like foam board instead of fiberglass when possible.
