A well-designed automatic irrigation system keeps your lawn and garden healthy while saving water compared to manual watering with a garden hose. Installing a sprinkler system is a major DIY project, but with proper planning and the right materials, it is achievable for most homeowners. Here is how to irrigation how to install a complete system from start to finish. This ensures the best results for your project.
A DIY irrigation system costs $500 to $2,000 for a typical 1/4-acre yard. Professional installation costs $2,000 to $5,000 for the same yard. The DIY savings are significant, but the project requires digging trenches, laying pipe, connecting sprinkler heads, and installing a controller. The project takes one to three weekends for most homeowners. This ensures the best results for your project.
Planning Your Irrigation System
Start by drawing a scale map of your yard showing the house, driveway, walkways, garden beds, and lawn areas. Measure the dimensions of each area and note the location of existing utilities like gas lines, electric cables, and water pipes. Call 811 before digging to have utility lines marked on your property for safety during the trenching work. This ensures the best results for your project.
Divide your yard into zones based on the water pressure and flow rate available from your outdoor spigot. Each zone can water a different area of the yard. A typical residential system has 4 to 8 zones depending on the yard size and layout. The water pressure determines how many sprinkler heads each zone can support with adequate coverage. This ensures the best results for your project.
Calculate the water flow rate by doing a bucket test. Fill a 5-gallon bucket from your outdoor spigot and time how many seconds it takes to fill it. Divide 300 by the number of seconds to get your flow rate in gallons per minute (GPM). This number determines how many sprinkler heads you can run in each zone for proper coverage. This ensures the best results for your project.
Materials Needed for Installation
The materials for a DIY irrigation system include PVC pipe or polyethylene tubing, sprinkler heads, valves, a controller, backflow preventer, fittings, and wire. The total material cost for a typical 1/4-acre yard is $400 to $1,500. The materials are available at most home improvement stores and irrigation supply companies. This ensures the best results for your project.
PVC pipe is the most common choice for main lines and lateral lines in irrigation systems. PVC is rigid, durable, and easy to glue together with PVC cement. Polyethylene tubing is flexible and easier to route around obstacles but requires barbed fittings and clamps for connections. The choice of pipe material depends on your preference and the complexity of the system. This ensures the best results for your project.
| Component | Cost range | Quantity for 1/4 acre |
| PVC pipe (1 inch) | $0.50 to $1 per ft | 200 to 400 ft |
| Sprinkler heads | $5 to $15 each | 15 to 30 heads |
| Valves | $15 to $40 each | 4 to 8 valves |
| Controller | $50 to $200 | 1 controller |
| Backflow preventer | $40 to $150 | 1 required by code |
| Wire and fittings | $50 to $150 | As needed for the system |
Digging Trenches for Pipes
The most labor-intensive part of the irrigation installation process is digging the trenches for the pipes in the yard. The trenches should be 8 to 12 inches deep for PVC pipe to protect it from freezing and damage. Use a flat shovel or a trencher rental for larger yards. A walk-behind trencher rental machine costs $80 to $150 per day and saves significant time and effort. This ensures the best results for your project.
Lay out the trenches according to your plan. The main line runs from the water source to the valve manifold location. Lateral lines run from each valve to the sprinkler heads in each zone. Keep the trenches straight between sprinkler heads for the cleanest layout. Slope the pipes slightly toward drain valves at the lowest points of the system. This ensures the best results for your project.
Installing Pipes and Sprinkler Heads
Assemble the PVC pipes using primer and cement. Apply primer to both surfaces first, then apply cement and join the pieces with a quarter-turn twist. Hold the joint together for 30 seconds to allow the cement to set. Allow the cement to cure for 24 hours before testing the system with water pressure to prevent blowouts at the joints. This ensures the best results for your project.

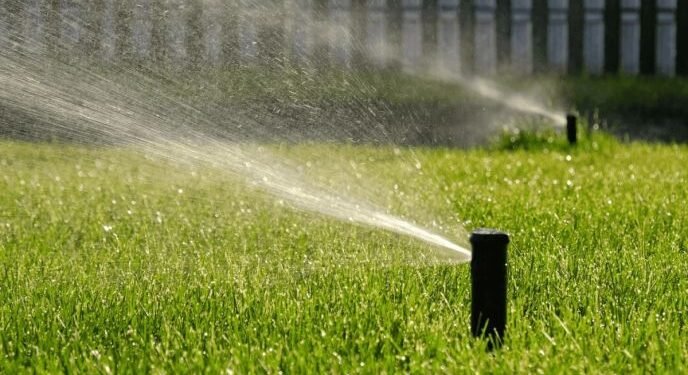

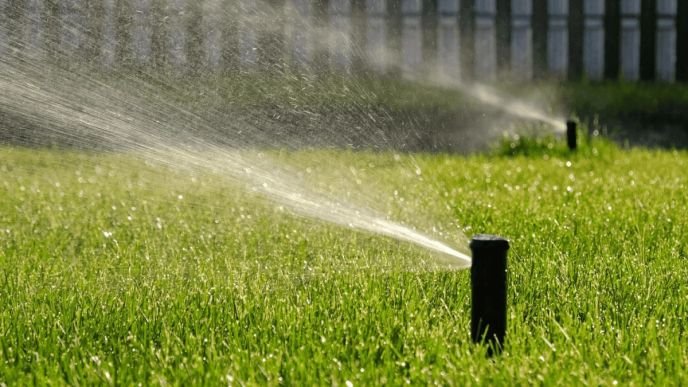

Install the sprinkler heads at the locations marked in your plan. The heads should be level with the ground surface to prevent tripping hazards and allow mowing over them. Use swing joints or flexible risers to connect the sprinkler heads to the lateral pipes. This allows adjusting the head height and angle after installation.
Install the valve manifold in a valve box that is accessible from the surface. The valve box protects the valves from soil and damage while allowing easy access for maintenance. The valves should be installed in the order corresponding to the zone numbers on the controller for easy identification during programming.
Installing the Controller
The irrigation controller mounts on an exterior wall near an electrical outlet or in the garage. Run wire from each valve to the controller. Use waterproof wire connectors at the valves to prevent corrosion. Connect the common wire from all valves to the common terminal on the controller. Connect each valve wire to the corresponding zone terminal.
Program the controller with the watering schedule for each zone. The schedule depends on the type of plants in each zone, the soil type, and the local climate. Most lawns need 1 to 1.5 inches of water per week during the growing season. Set the controller to water early in the morning to reduce evaporation and prevent fungal diseases on the grass.
An irrigation specialist with 20 years of experience said: “The most common mistake DIY installers make is installing too many sprinkler heads on one zone. Each head needs enough water pressure to pop up and spray properly. If you add too many heads, the pressure drops and the heads near the end of the line barely come up. Follow the manufacturer specifications for the maximum number of heads per zone based on your water pressure.”
Testing and Winterizing
After the cement cures, test each zone by opening the valve and checking for leaks at all joints and connections. Adjust the sprinkler head spray patterns and coverage by turning the adjustment screw on top of each head. Check for overspray onto sidewalks, driveways, and walls. Adjust heads to water only the lawn and garden areas for water efficiency.
In cold climates, the irrigation system must be winterized before the first freeze to prevent pipe damage. Use an air compressor to blow out the water from all pipes and sprinkler heads. Remove the backflow preventer and store it indoors for the winter. Drain all valves and low points in the system to prevent freezing and cracking of the pipes.
The investment in proper installation pays off through lower energy bills and increased home comfort. Take the time to do the job correctly the first time. Follow the manufacturer instructions for the specific products you choose for the project. Proper preparation and attention to detail during installation ensure the best results and longest lifespan for your system.
Water Conservation Tips for Irrigation
An automatic irrigation system can waste water if not programmed correctly. Set the controller to water deeply and infrequently rather than shallow and often. Deep watering encourages deeper root growth that makes the lawn more drought tolerant. Water early in the morning between 4 AM and 8 AM to reduce evaporation losses from wind and sun exposure during the heat of the day.
Install a rain sensor that automatically shuts off the irrigation system when it rains. Rain sensors cost $20 to $50 and prevent water waste during wet weather. Smart irrigation controllers adjust the watering schedule based on local weather data and soil moisture levels. These controllers cost $100 to $300 but can reduce water usage by 20 to 40 percent compared to standard timed controllers for the system.
Taking the time to research and plan your project ensures the best results. The investment in proper materials and installation pays off through better performance, longer lifespan, and greater satisfaction with the finished project. Use the information provided to make confident decisions for your home improvement needs. Compare options carefully and choose the solution that best fits your specific requirements and budget for the project.
Frequently Asked Questions
How much does it cost to install a DIY irrigation system?
A DIY system costs $500 to $2,000 for a typical 1/4-acre . Professional installation costs $2,000 to $5,000. The DIY savings are $1,500 to $3,000 for most yards.
Is installing an irrigation system difficult?
It is a moderate DIY project requiring digging, plumbing,. Most homeowners can complete it in one to three weekends with proper planning and basic tools.
What time of year is best for installation?
Spring and fall are the best times for installation. The ground is softer for digging and the weather is more comfortable for outdoor work. Avoid installing during frozen ground conditions.
Do I need a permit for an irrigation system?
Most areas require a permit for irrigation installation. The permit ensures the backflow preventer is installed correctly to protect the water supply. Check with your local building department.
How much water pressure do I need?
Most sprinkler systems need 30 to 50 PSI of water pressure. Measure your pressure with a gauge. Low pressure requires smaller zones or pressure-boosting equipment for proper coverage.
What type of sprinkler head is best?
Rotary heads are best for large lawn areas. Spray heads are best for small to medium areas and garden beds. Drip irrigation is best for flower beds and vegetable gardens.
How much maintenance does an irrigation system need?
Spring startup, monthly checks during the season, and fal. Replace damaged heads and adjust spray patterns as needed for proper coverage.
Does an irrigation system save water?
Yes, a properly designed system saves 20 to 50 percent co. The automatic timer prevents overwatering and ensures the right amount for the lawn.
